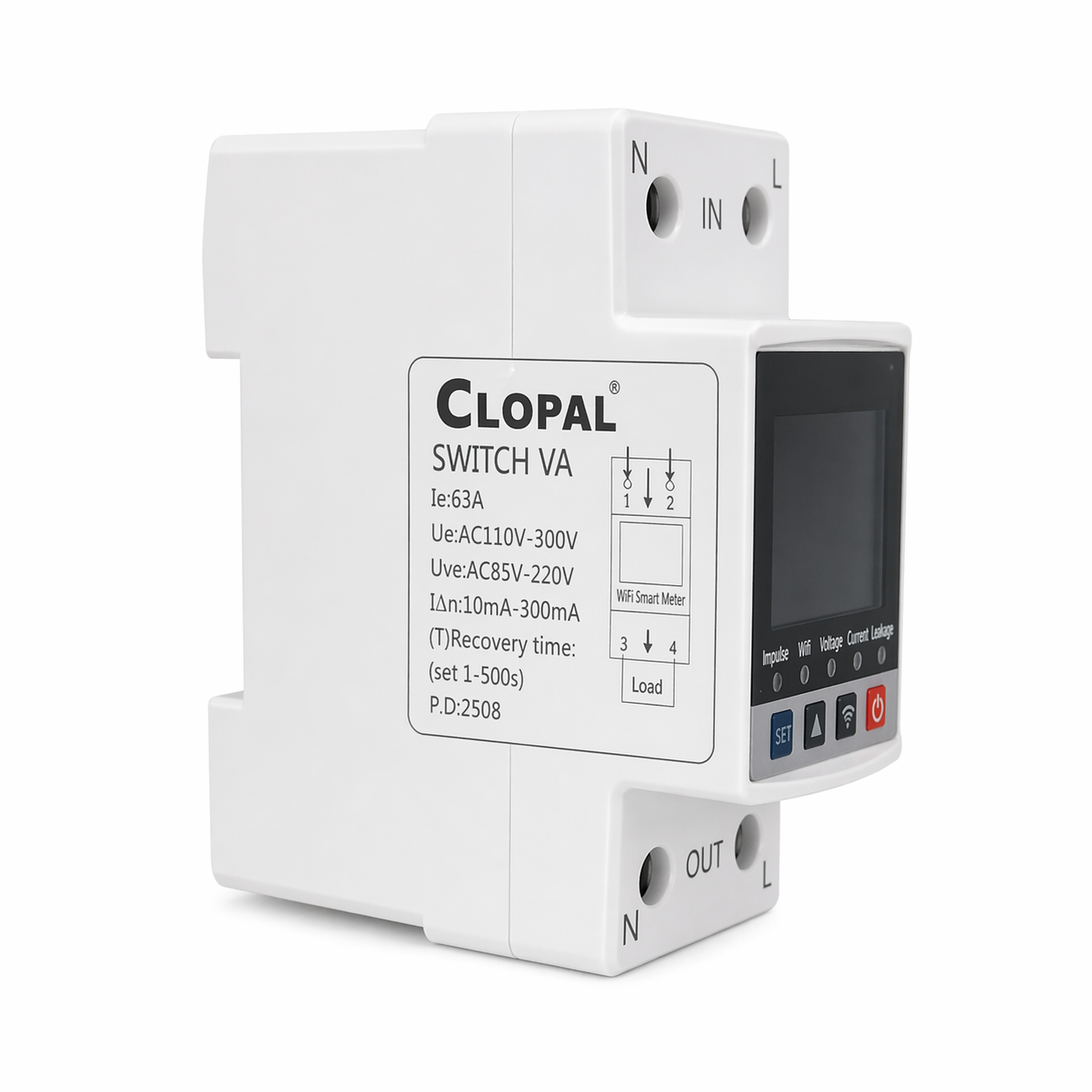

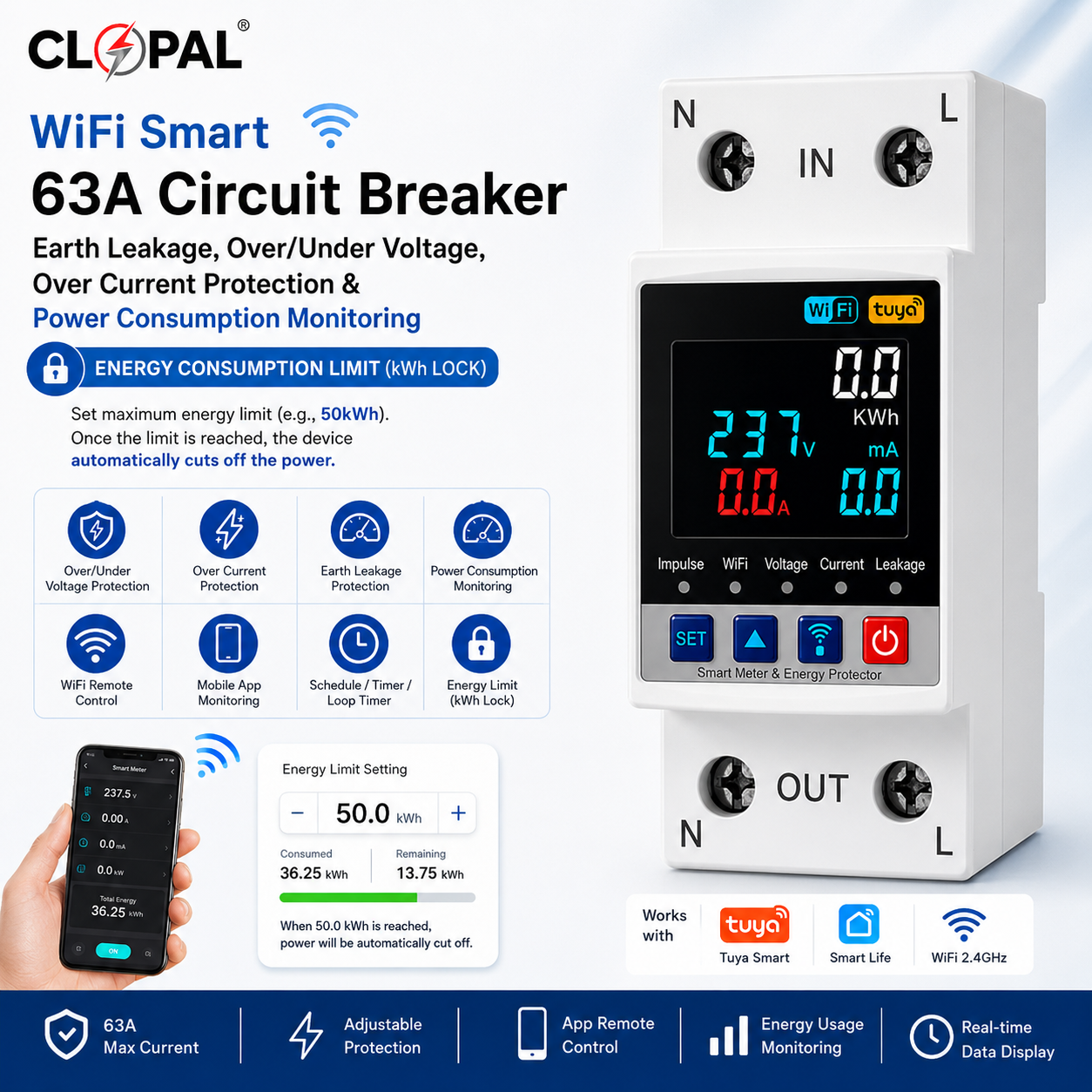

Clopal WiFi Smart 63A Circuit Breaker with Energy Consumption Limit, Earth Leakage, Over/Under Voltage & Power Monitoring

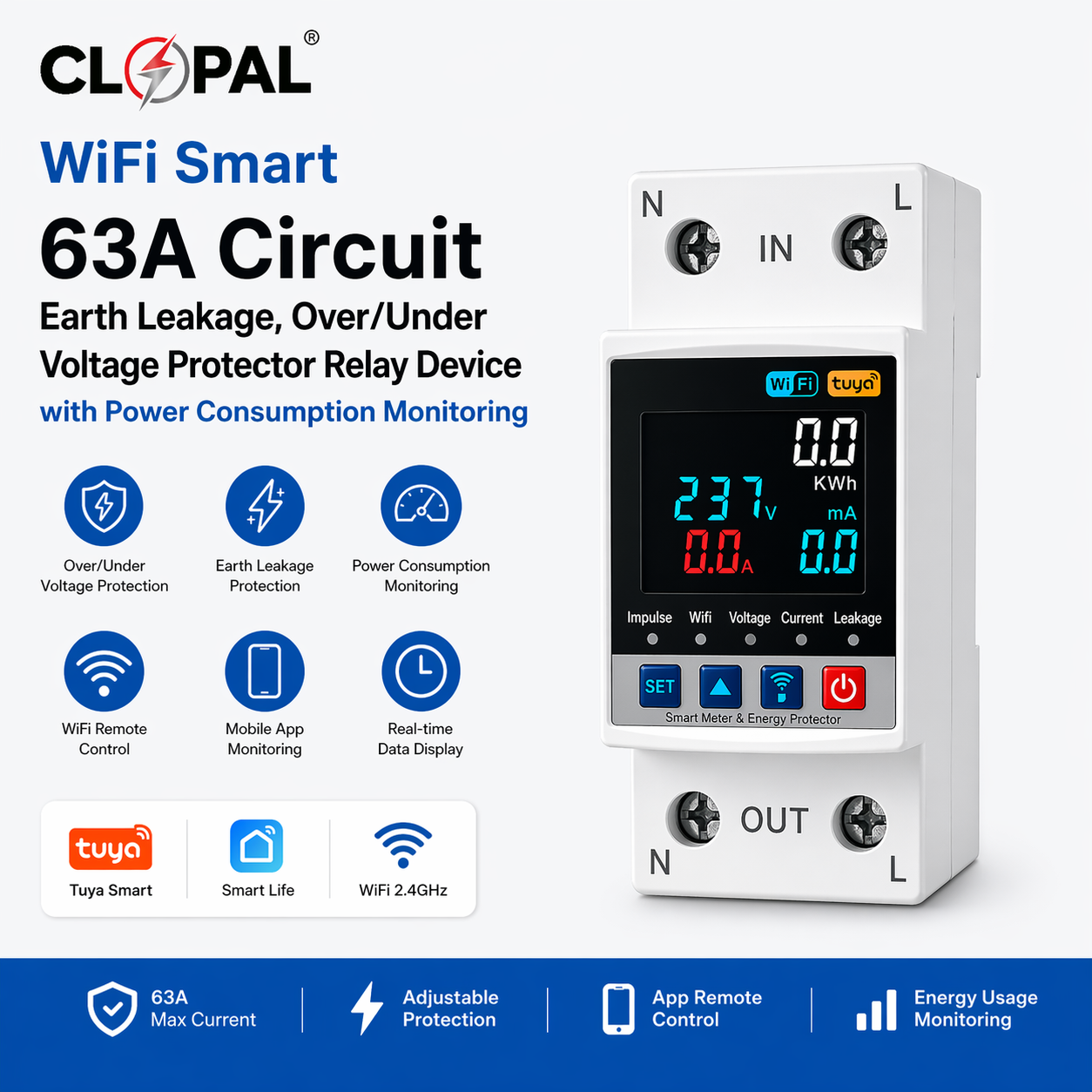

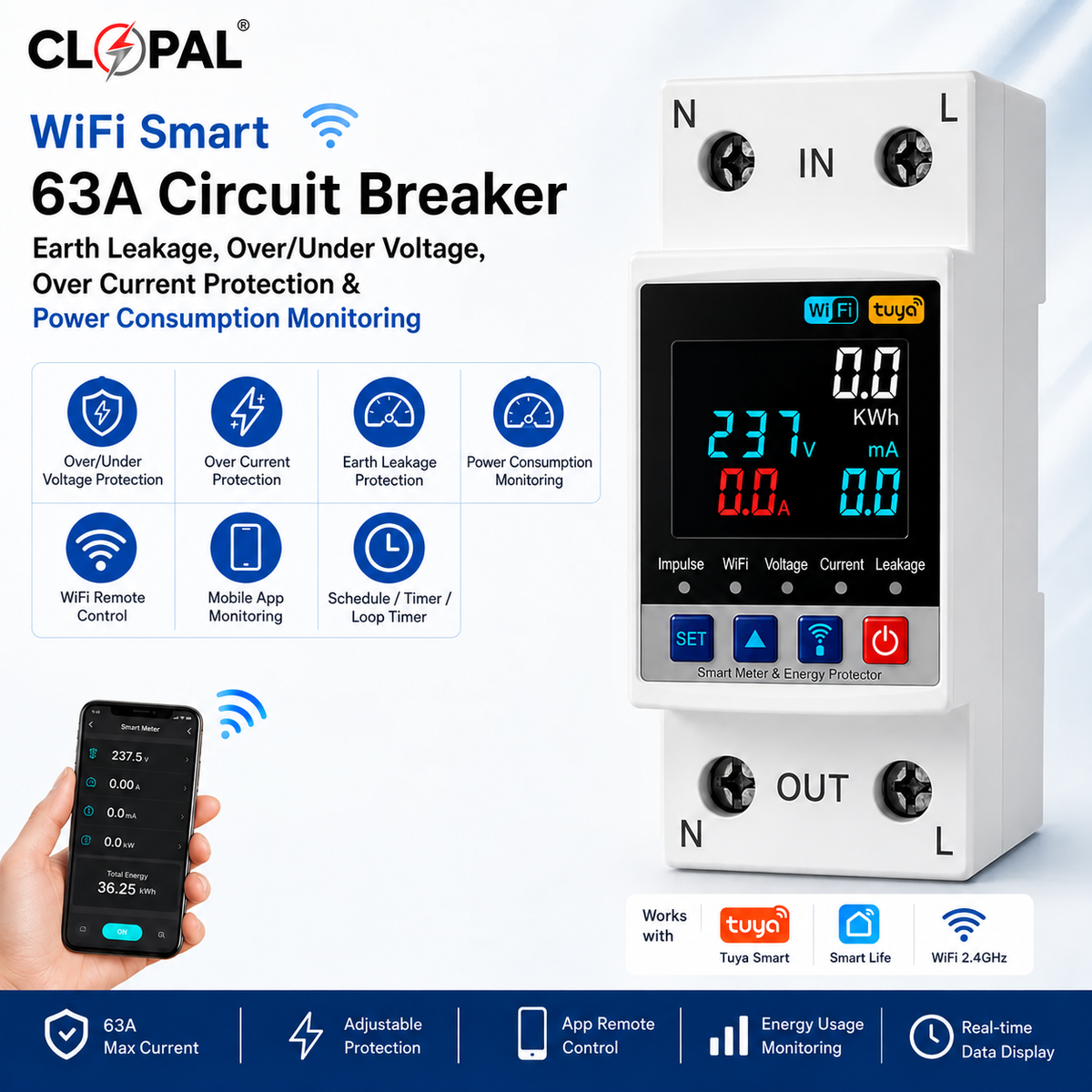

WiFi Smart 63A Circuit Breaker with Earth Leakage, Voltage & Current Protection

The WiFi Smart 63A Circuit Breaker is designed for smart electrical protection, remote control and real-time energy monitoring. It provides protection against over-voltage, under-voltage, over-current and earth leakage, helping protect connected electrical appliances and electrical circuits.

The circuit breaker can be controlled remotely through a compatible mobile app and supports timer, schedule and loop timer functions. Adjustable voltage, current and leakage protection settings allow users to configure the device according to their electrical requirements.

Key Features

• 63A Maximum Current Capacity
• WiFi Remote Control: Control the device remotely through the mobile app.
• Energy Monitoring: Monitor voltage, current, leakage and electricity consumption.
• Over-Voltage Protection: Adjustable from 110V to 300V.
• Under-Voltage Protection: Adjustable from 85V to 220V.
• Over-Current Protection: Adjustable from 1A to 63A.
• Earth Leakage Protection: Adjustable from 10mA to 100mA and can be disabled when required.
• Automatic Power Cut-Off: Disconnects connected appliances when the preset voltage or current protection threshold is reached.
• Adjustable Trip Delay: Over-voltage and under-voltage trip delay adjustable from 1 to 30 seconds.
• Adjustable Reset / Start Delay: Adjustable from 1 to 500 seconds.
• Schedule & Timer: Supports schedule, timer and loop timer functions.
• Real-Time Data Display: View important electrical parameters directly on the device display.

Technical Specifications

• Rated Supply Voltage: AC 220V
• Operating Voltage Range: AC 85V–300V, Single Phase
• Rated Frequency: 60Hz
• Current Setting Range: 1A–63A
• Over-Voltage Setting Range: 110V–300V Adjustable
• Under-Voltage Setting Range: 85V–220V Adjustable
• Earth Leakage Protection Range: 10mA–100mA Adjustable
• Earth Leakage Protection: Can be disabled
• Measurement Error: ±2%
• Over / Under Voltage Trip Delay: 1–30 Seconds Adjustable
• Default Trip Delay: 1 Second
• Reset / Start Delay: 1–500 Seconds Adjustable
• Default Reset / Start Delay: 5 Seconds
• Voltage Measurement Accuracy: Within 1% of the overall measurement range
• Rated Insulation Voltage: 400V
• Output Contact: 1 NO
• Maximum Operating Altitude: 2000m
• Operating Temperature: -30°C to 70°C
• Energy Display Range: 0–99999.9 kWh
• Product Size: 85 × 60 × 38mm
• Package Size: 89 × 63 × 40mm

Protection Functions

The smart circuit breaker continuously monitors electrical conditions. If the configured voltage, current or leakage value exceeds the selected protection threshold, the device can automatically disconnect the connected load to help protect electrical equipment.

• Under-Voltage Protection: 85V–220V Adjustable, Default 90V
• Over-Voltage Protection: 110V–300V Adjustable, Default 135V
• Over-Current Protection: 1A–63A Adjustable, Default 63A
• Earth Leakage Protection: 10mA–100mA Adjustable, Default 30mA

Smart Control Functions

• Remote ON/OFF control through compatible mobile app
• Real-time voltage monitoring
• Real-time current monitoring
• Earth leakage monitoring
• Power and energy consumption monitoring
• Schedule function
• Timer function
• Loop timer function
• Adjustable protection threshold settings through the app

Suitable for: Homes, offices, shops, electrical distribution systems and other single-phase electrical installations requiring smart monitoring and adjustable electrical protection.
